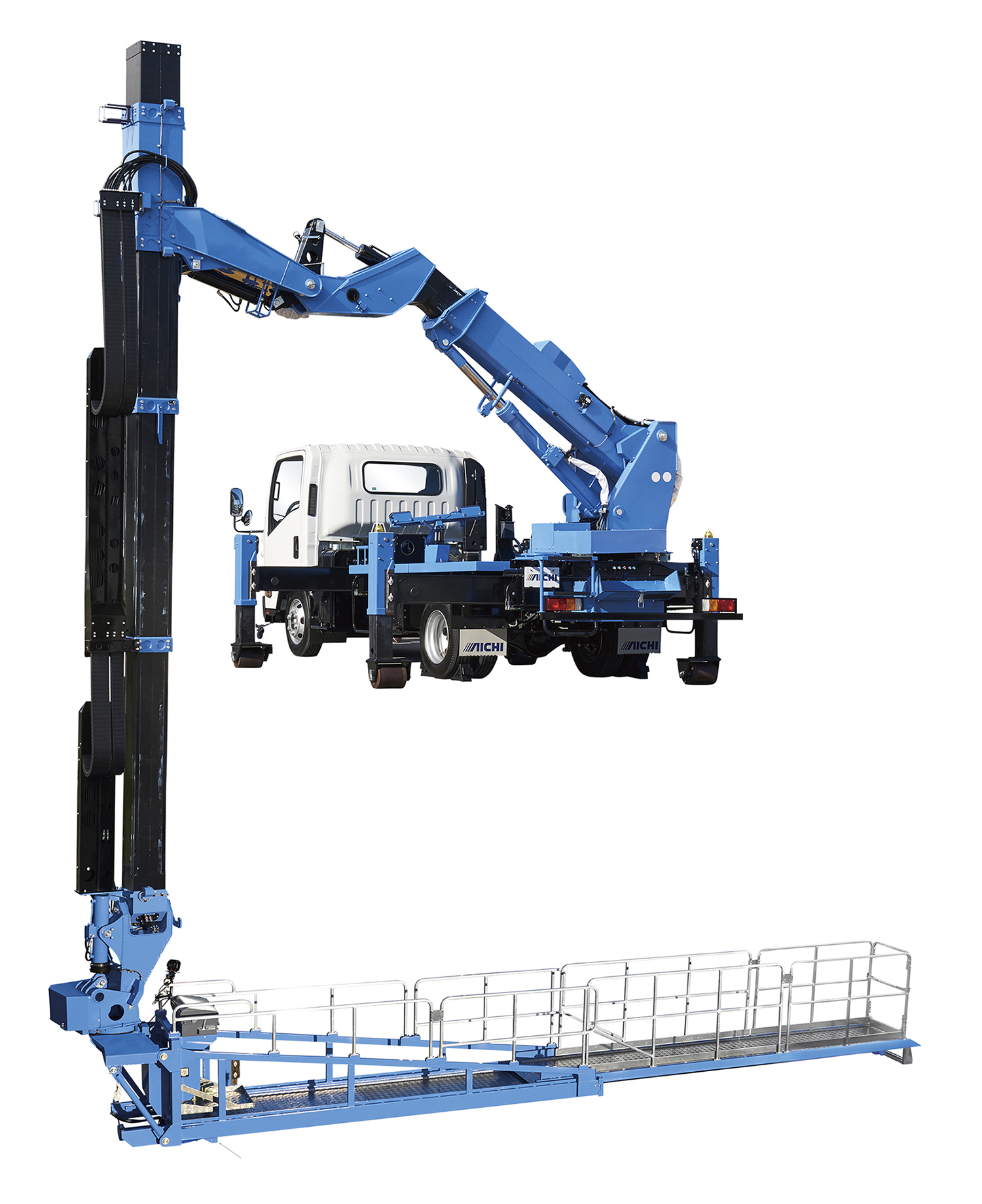

Workers can carry out inspections by walking to each point.
Tap or click here to watch product video.
| MODEL | SF77A-IV |
|---|---|
| RATED LOAD | 200kg |
| MAXIMUM PLATFORM HEIGHT | 7.44m |
| MAXIMUM PLATFORM DOWN REACH | 7.62m |
| WORKING RADIUS | 5.73m |
Click to enlarge images.

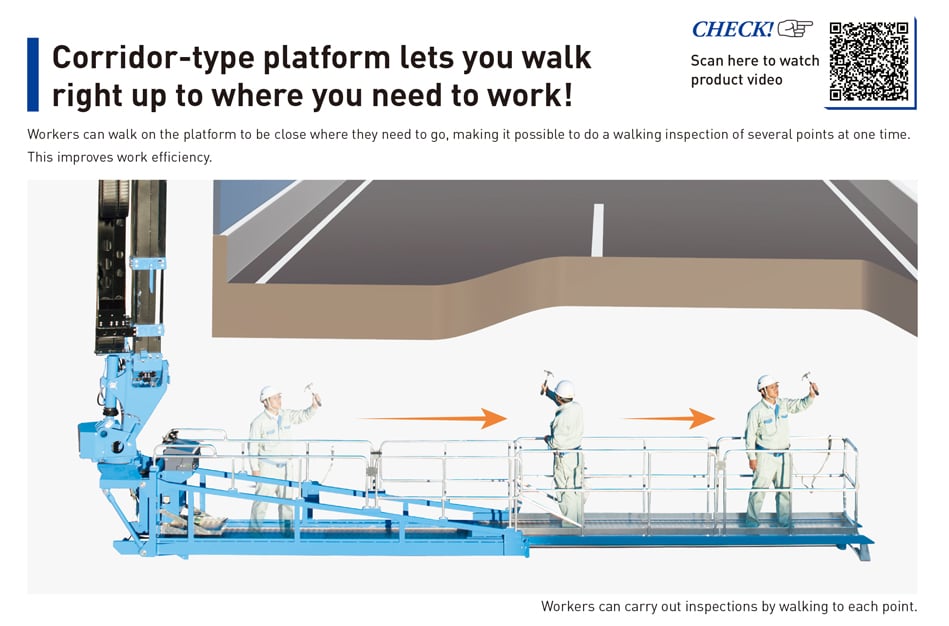

Corridor-type platform lets you walk right up to where you need to work!

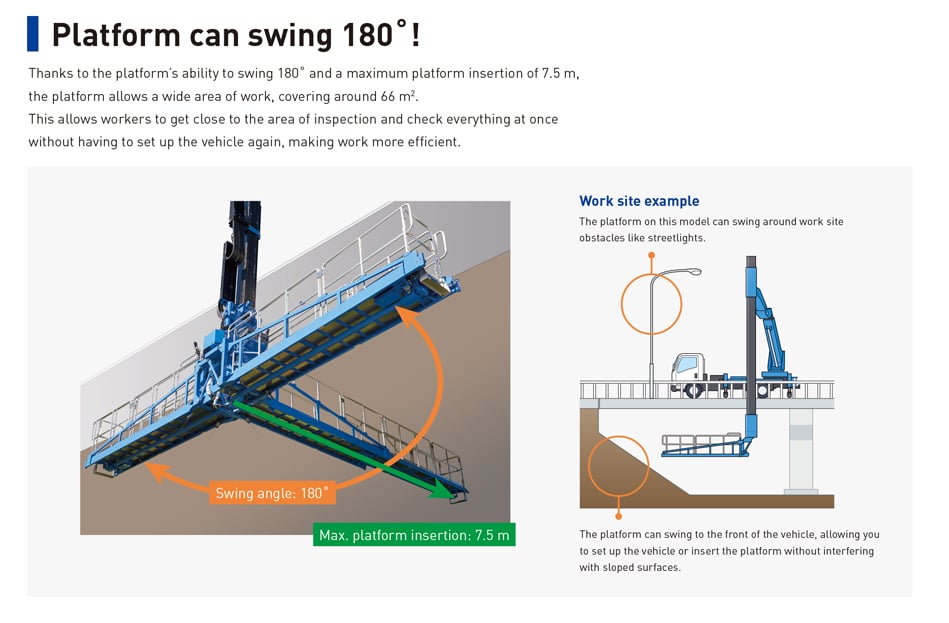

Platform can swing 180°!

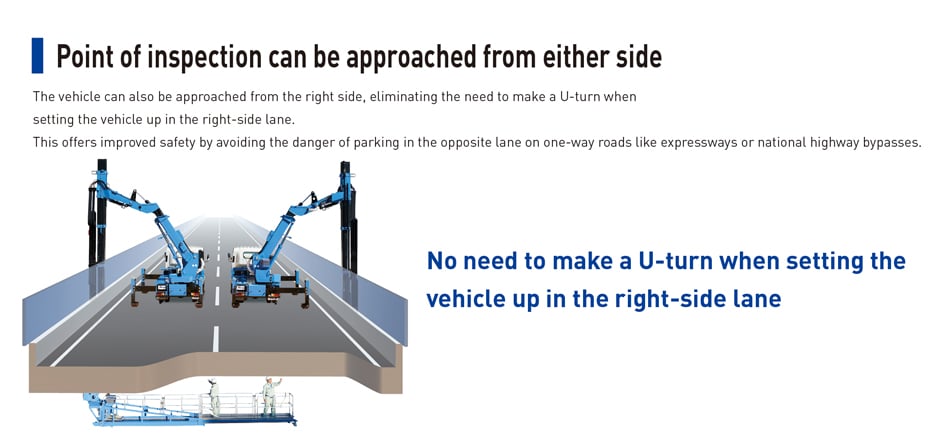

Point of inspection can be approached from either side

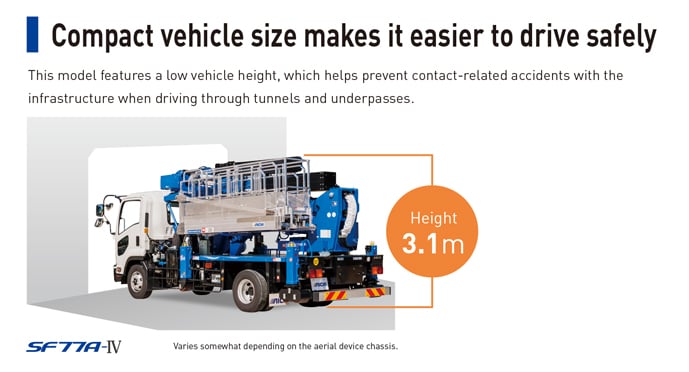

Compact vehicle size makes it easier to drive safely

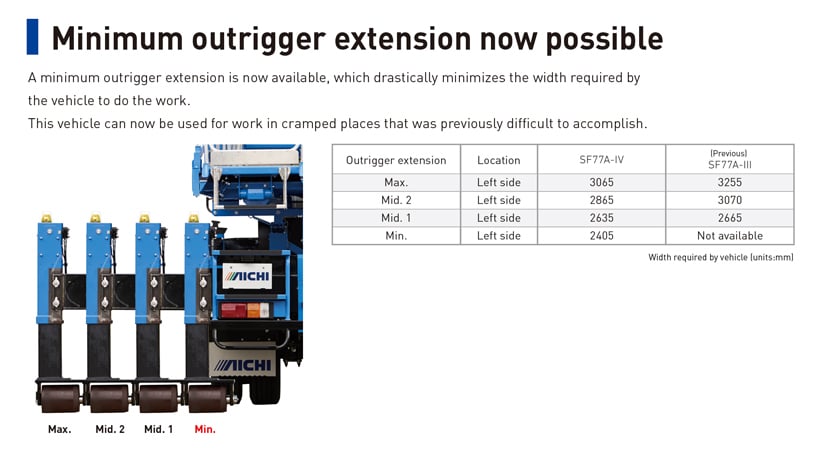

Minimum outrigger extension now possible

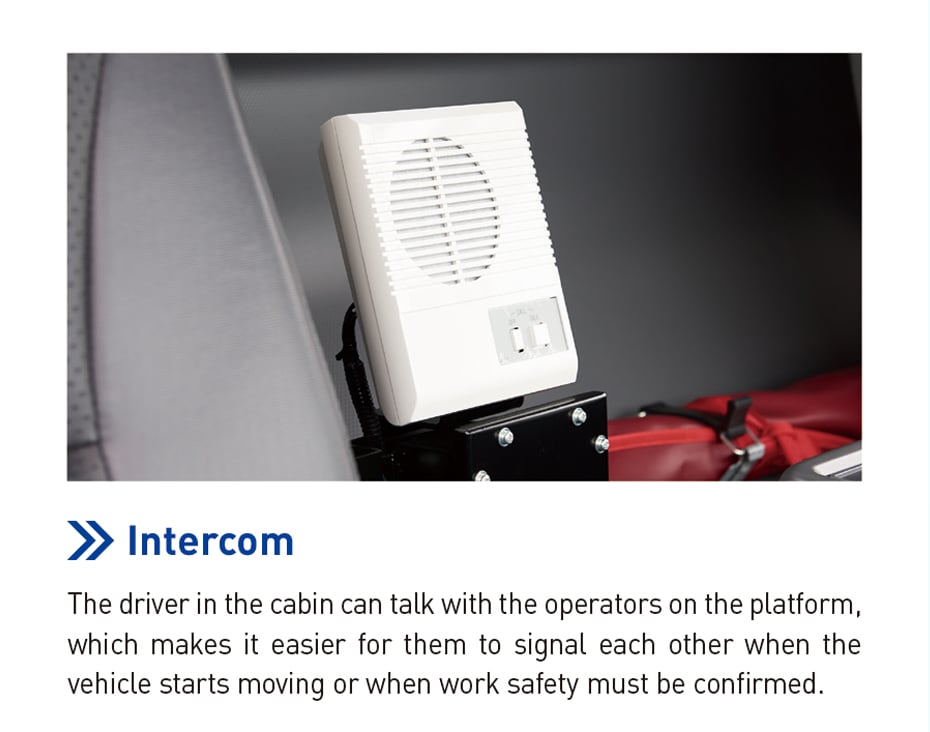

Intercom

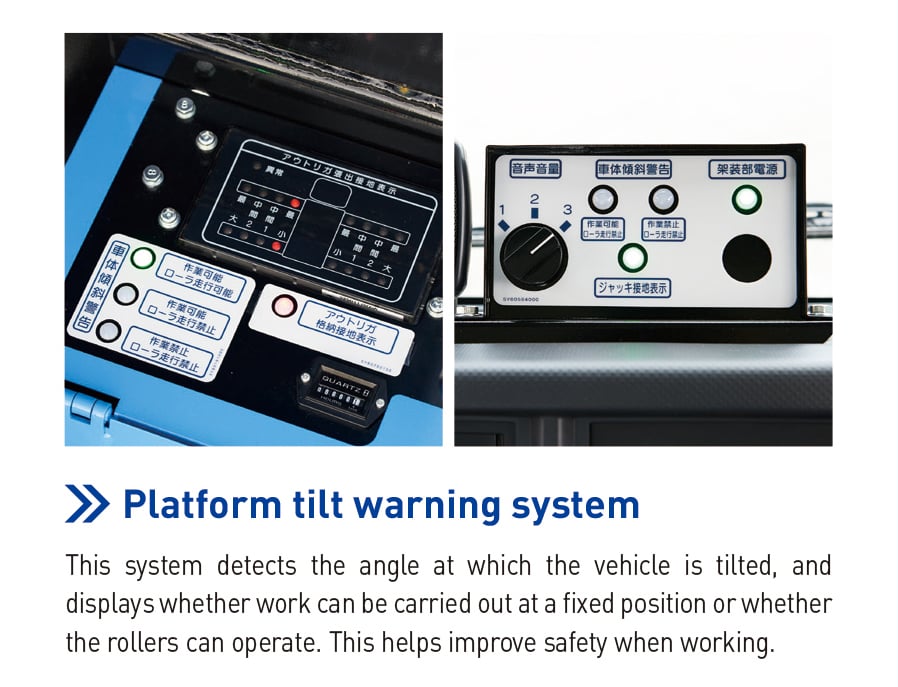

Platform tilt warning syatem

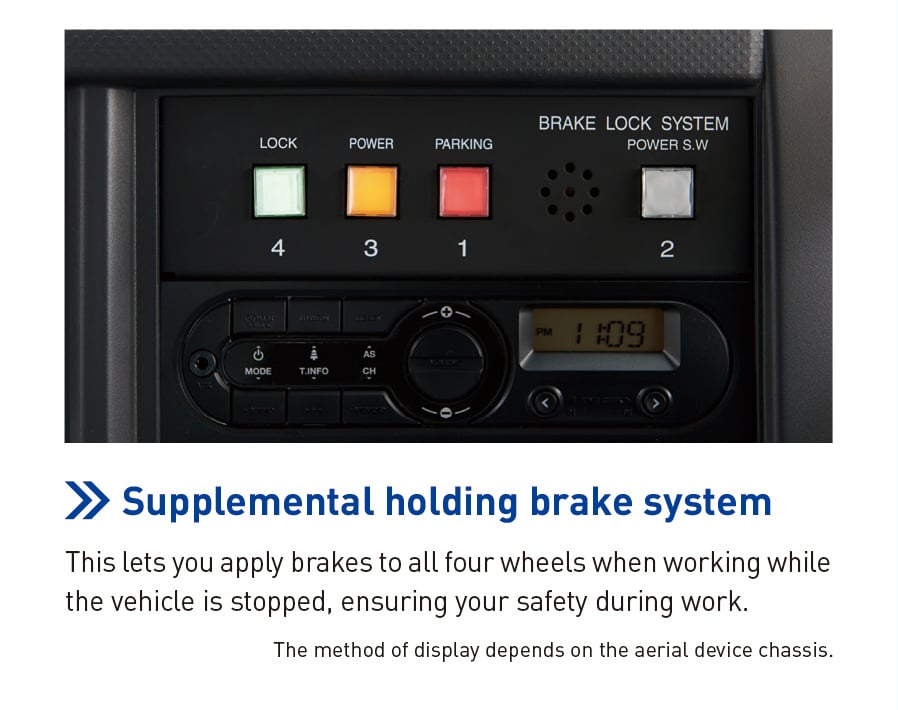

Supplemental holding brake system
Platform press-down prebention system

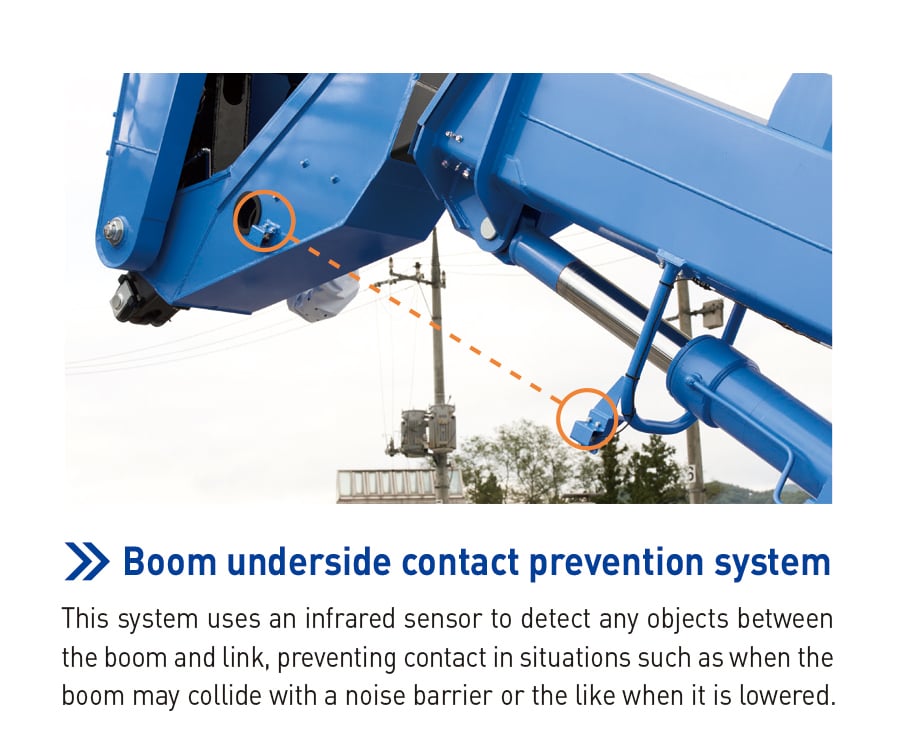

Boom underside contact prevention system
100V Power outlet

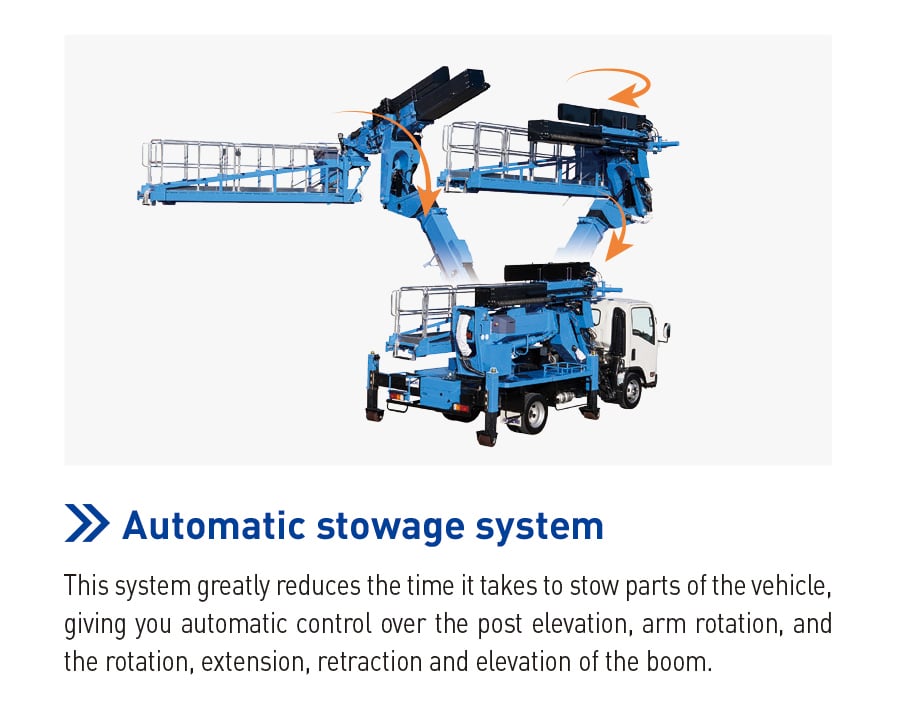

Automatic stowage system

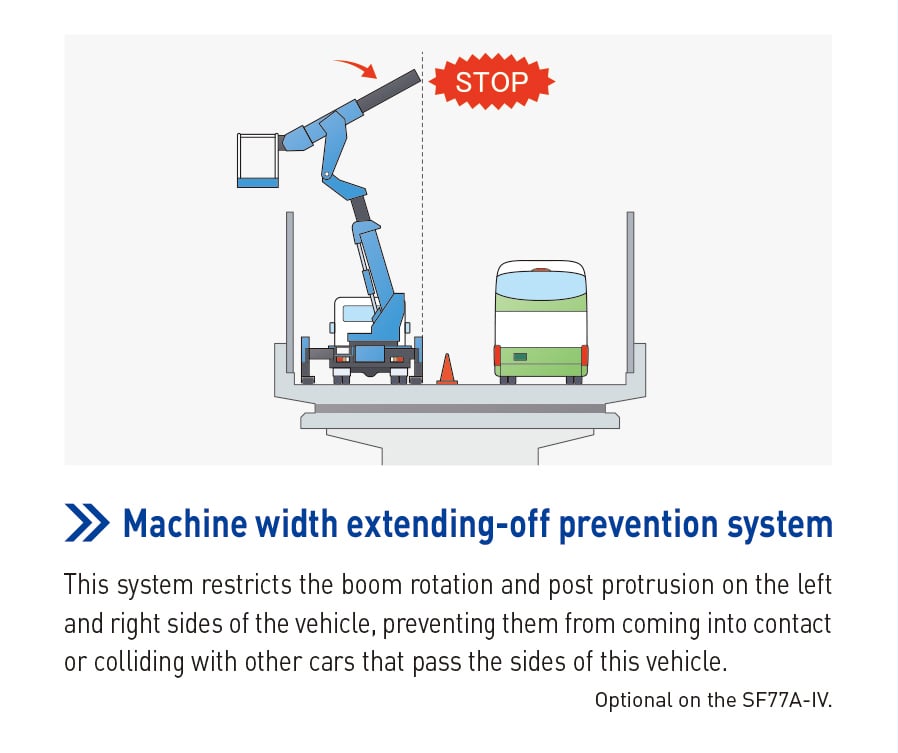

Machine width extending-off prevention system

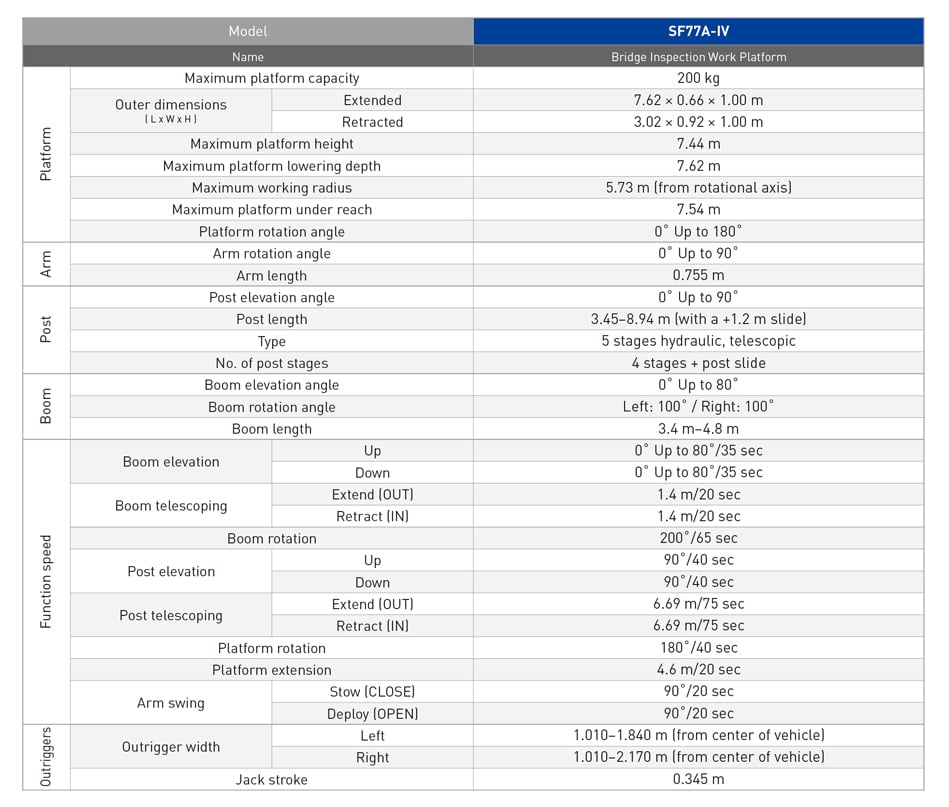

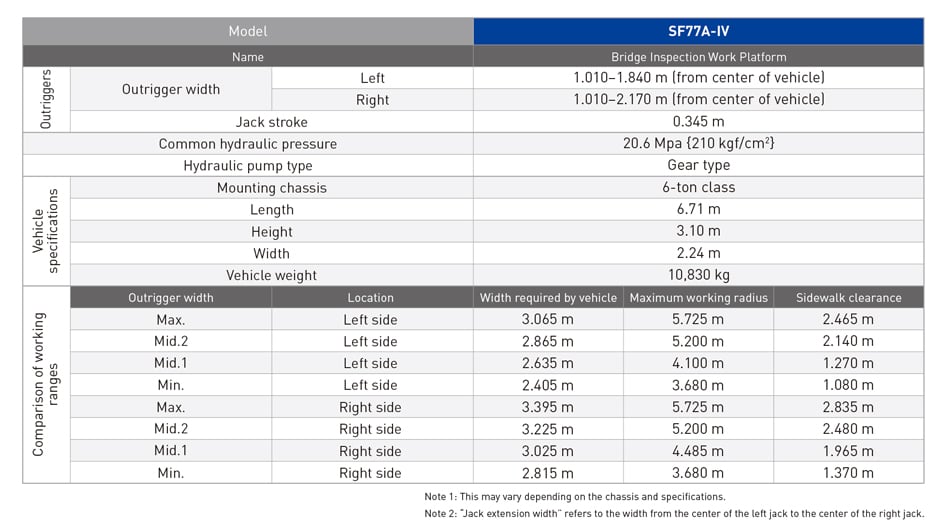

Main Specifications
Note 1 : This may vary depending on the chassis and specifications.
Note 2 : "Jack extention width" refers to the width from the center of the left jack to the center of the right jack.

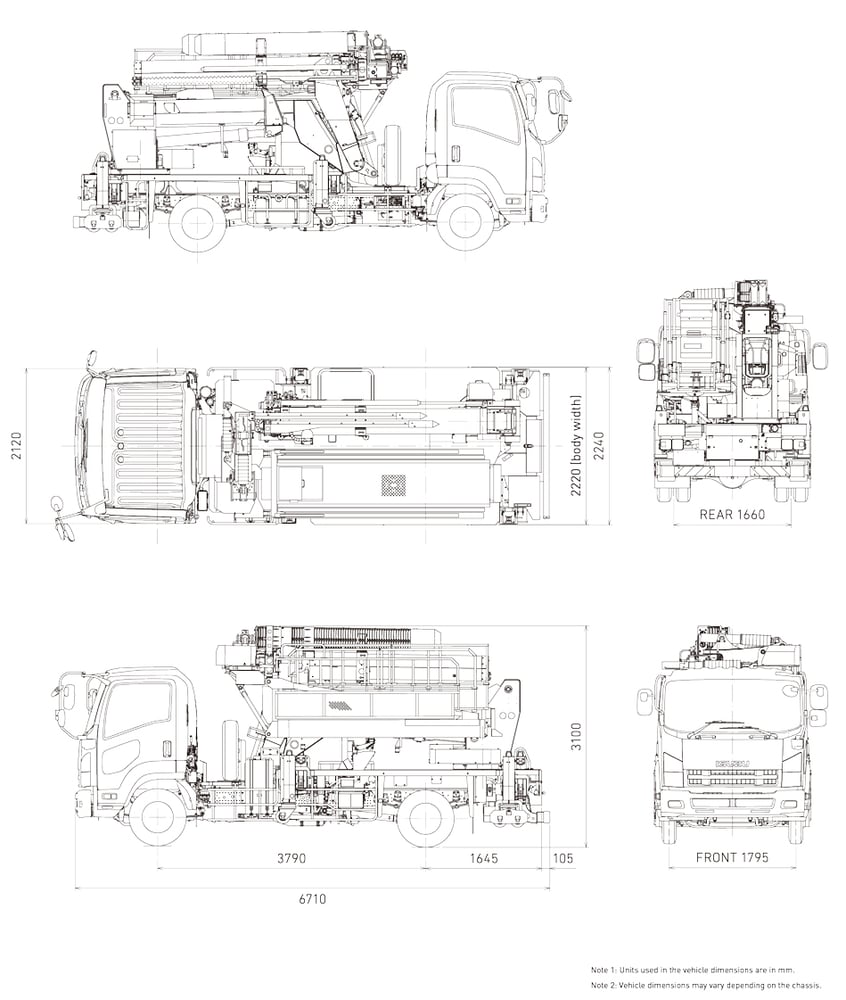

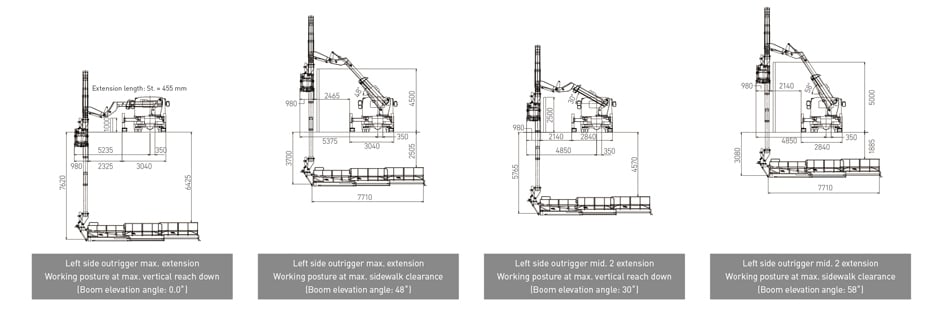

Vehicle Dimensions
Note 1 : Units used in the vehicle dimensions are in mm.
Note 2 : Vehicle dimensions may vary depending on the chassis.

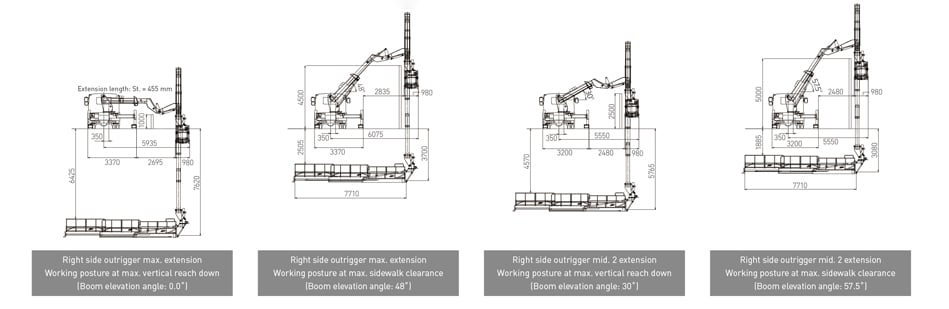

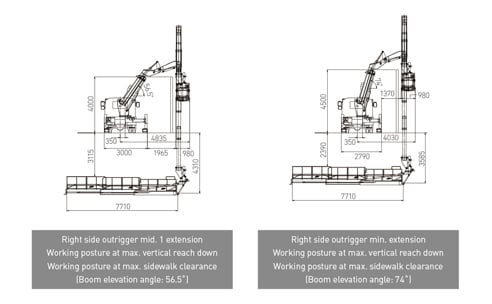

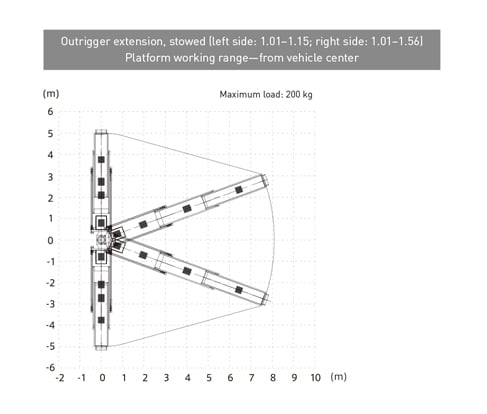

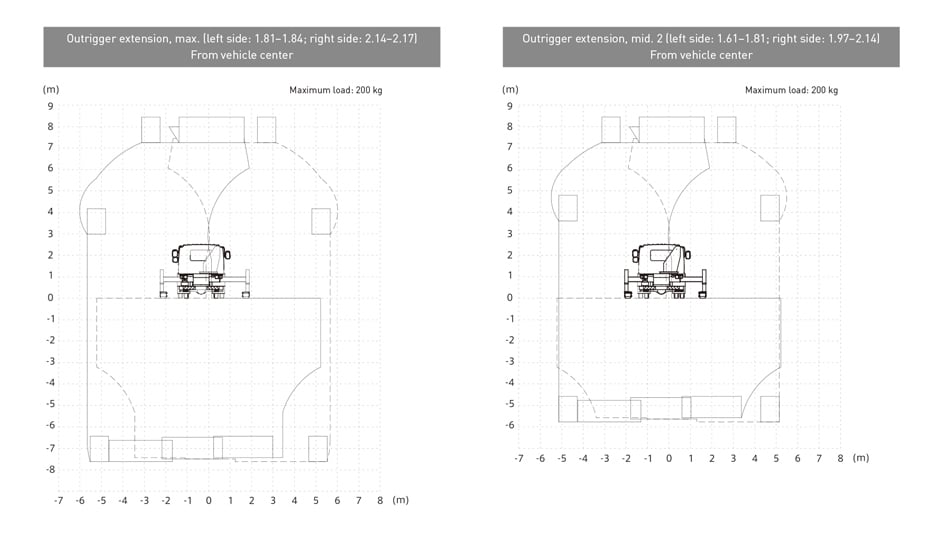

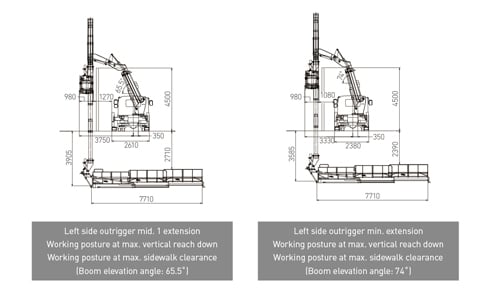

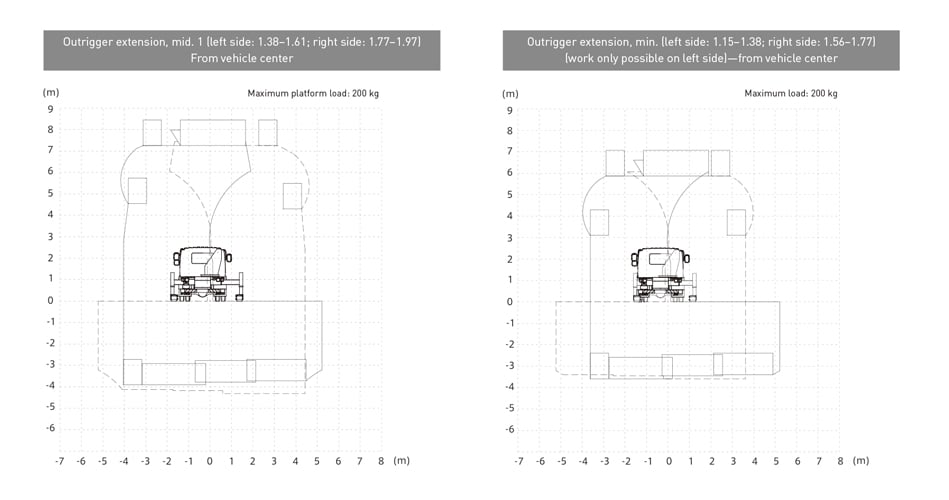

Working Range Diagrams
