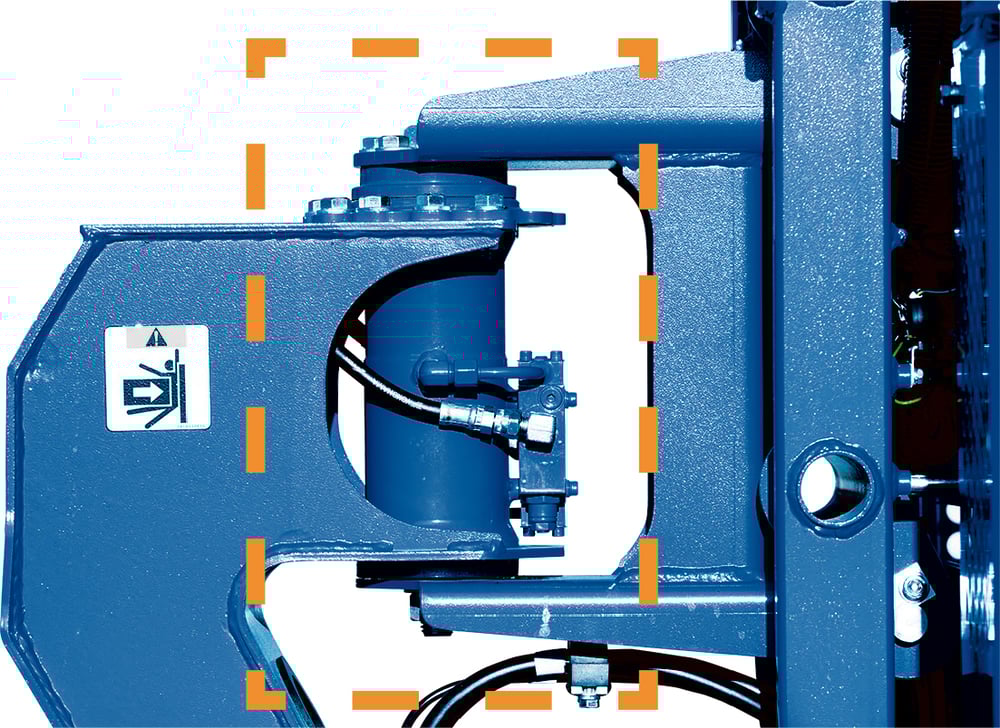

When a large load is applied to the basket, the basket rotation mechanism with hydraulic rotary actuator operates to release the load and decrease risk of damage.
*Damage may occur when force is applied at rotation end and/or past rotation angle.

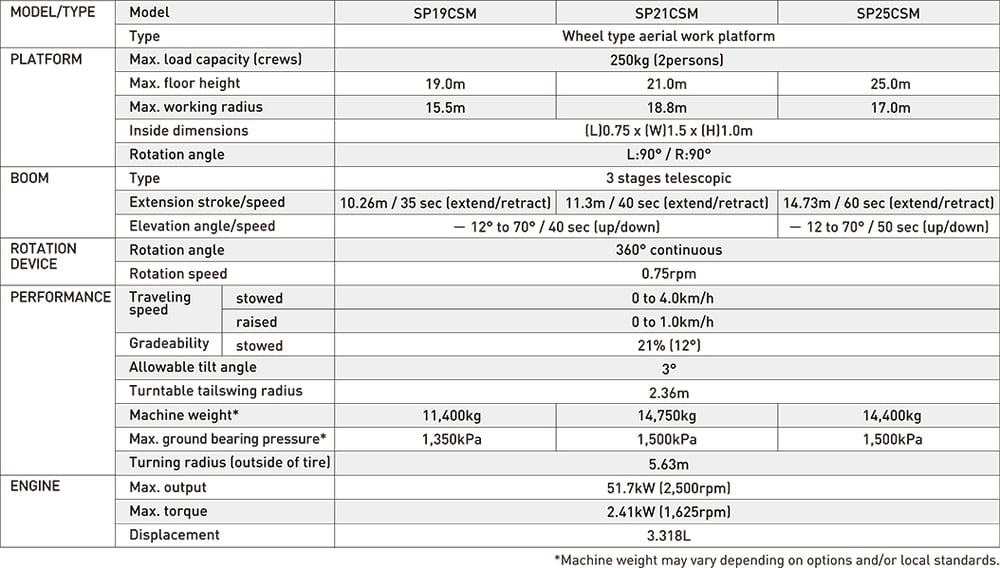

| MODEL | SP19CSM |
|---|---|
| RATED LOAD | 250kg or two persons |
| MAX. FLOOR HEIGHT CLASS | 19m |
| OUTREACH CLASS | 16m |
| MODEL | SP21CSM |
|---|---|
| RATED LOAD | 250kg or two persons |
| MAX. FLOOR HEIGHT CLASS | 21m |
| OUTREACH CLASS | 19m |
| MODEL | SP25CSM |
|---|---|
| RATED LOAD | 250kg or two persons |
| MAX. FLOOR HEIGHT CLASS | 25m |
| OUTREACH CLASS | 17m |

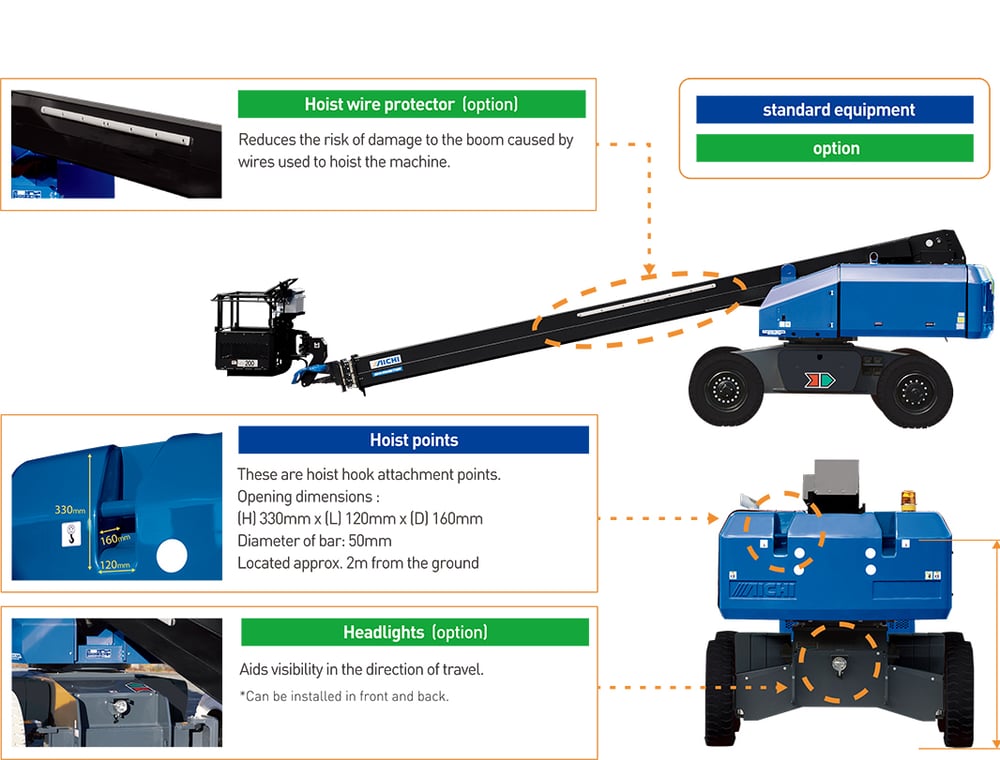

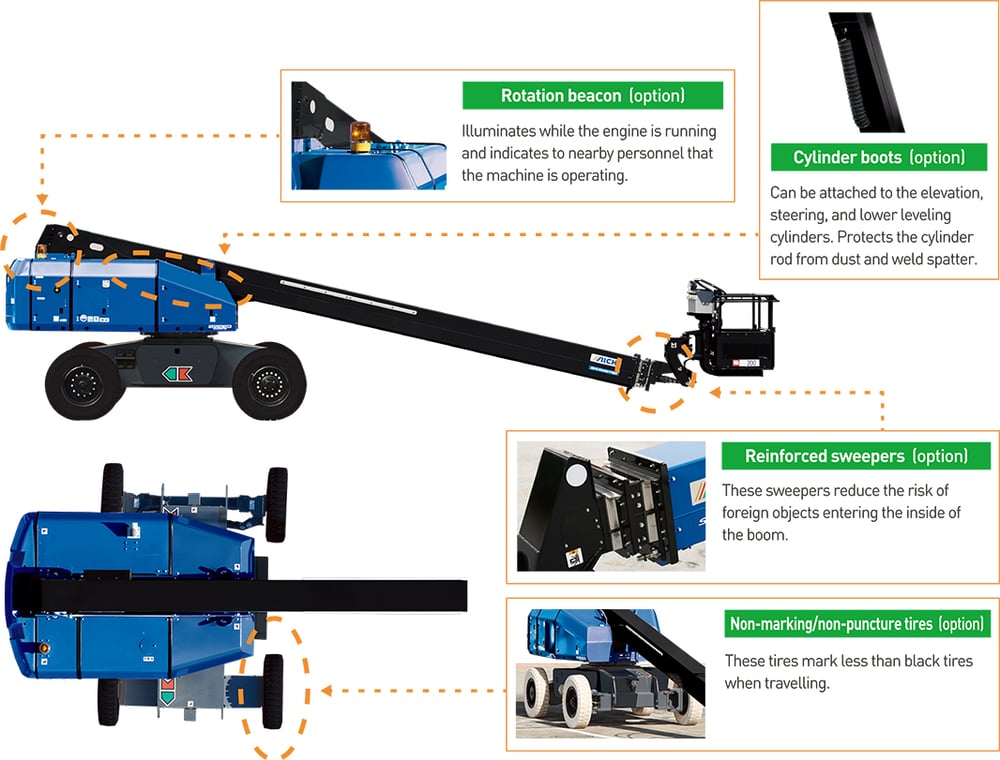

1) SP21CSM with optional equipment pictured.
2) Click to enlarge images.
2) Click to enlarge images.
Reduced risk of damage to rotation device

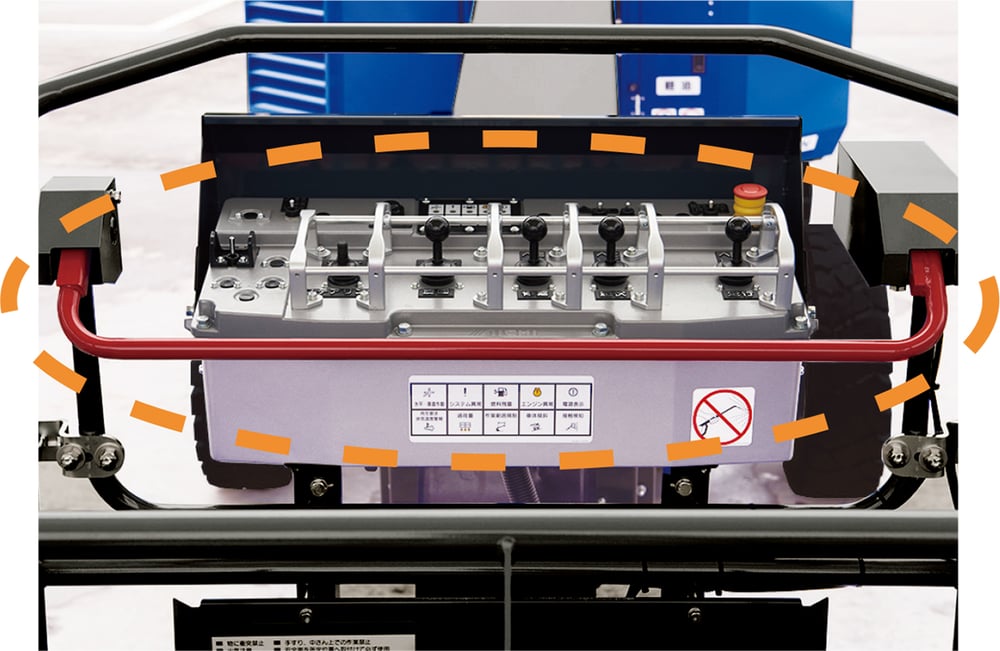

Improved safety devices
Bar-type touch switch is utilized. It can correspond to basket deformation and it is more reliable than previous wire-type switch.

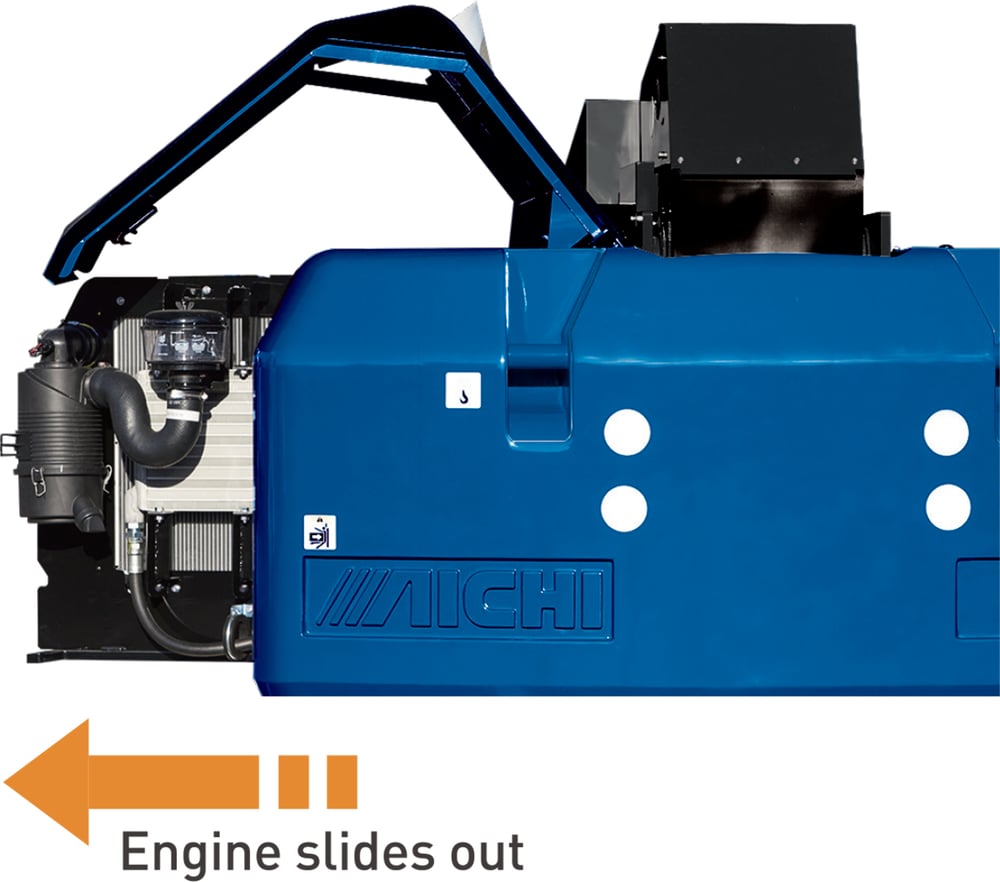

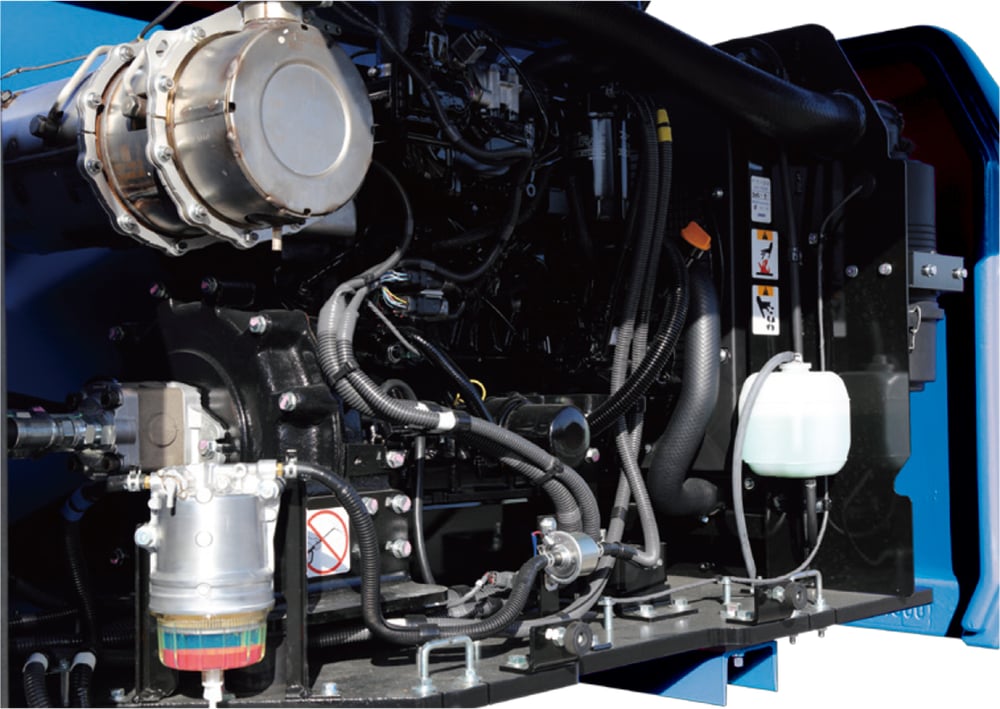

Improved engine maintenance
A gull-wing cover and swing-out engine base are utilized. The ease of maintenance and cleaning are impoved.
Reduced environmental burden and improved fuel efficiency
New Tier 4 engine reduces environmental burden. In addition, engine speed control in accordance with work load increases fuel efficiency.
[Tier 2, Tier 3 engine can also be available]
1)Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notice.
2)The photos and/or drawings are for illustrative purpose only.
3)This information, while believed to be completely reliable is not be taken as warranty for which we assume legal responsibility.
4)Specifications are depend on regulations of each country.
5)All pictures are equipped with options.

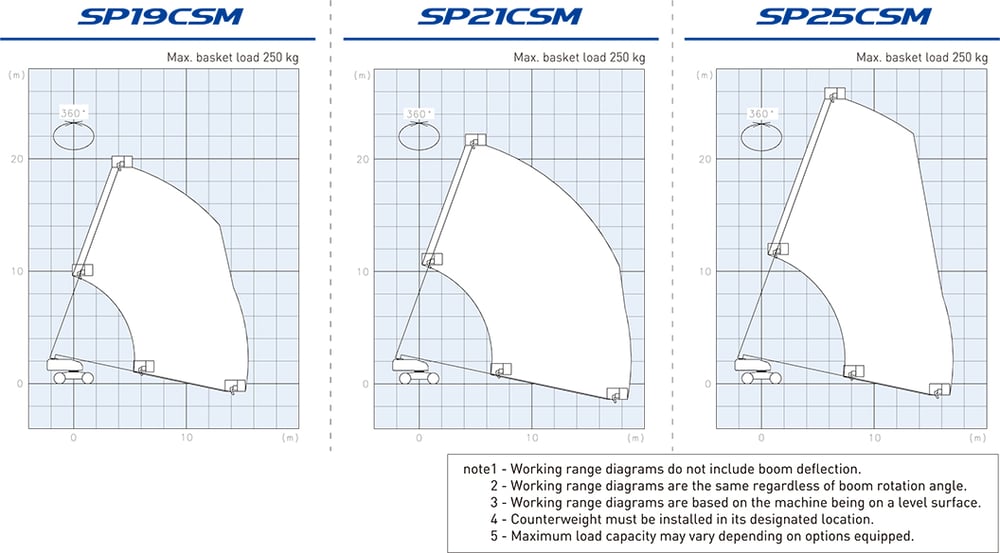

Working Range Diagrams
